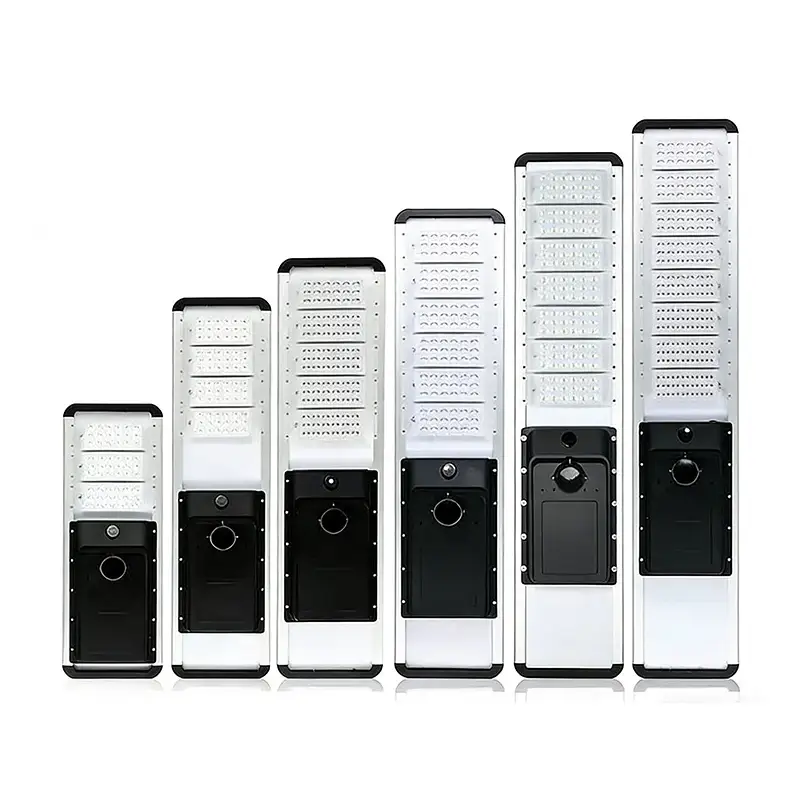

High Power All-in-One Solar Street Light (100W–350W) - SLP-SS-A03 1

High Power All-in-One Solar Street Light (100W–350W) - SLP-SS-A03 2

High Power All-in-One Solar Street Light (100W–350W) - SLP-SS-A03 3

High Power All-in-One Solar Street Light (100W–350W) - SLP-SS-A03 4

High Power All-in-One Solar Street Light (100W–350W) - SLP-SS-A03

Designed for Municipal Roads & Infrastructure Projects
A15 is a high-output integrated solar street lighting solution suitable for 6–12m pole installation.
It combines high-efficiency photovoltaic charging, LiFePO4 energy storage, and intelligent control into a compact die-cast aluminum structure.

Inquiry

Write a Review

parameter

Parameter Specification

Watt	100W	150W	200W	250W	300W	350W
LED Lamp	3030 LED 108PCS	3030 LED 108PCS	3030LED 180PCS	3030LED 216PCS	3030LED 252PCS	3030LED 288PCS
Control Way	Microwave motion sensor+Light Control+Remote Control
Solar Panel	18V 81W, Mono-crystaline	18V 116W, Mono-Crystaline	18V 120W, Mono-crystaline	18V 129W, Mono-crystaline	18V 140W, Mono-crystaline	18V 162W, Mono-crystaline
Battery Type	LiFePO4 12.8V 36AH	LiFePO4 12.8V 54AH	LiFePO4 12.8V 57AH	LiFePO4 12.8V 66AH	LiFePO4 12.8V 72AH	LiFePO4 12.8V 84AH
Charging Time	6-8 hours
Luminous Efficiency	160 LM/W
IP Rate	P65
Material	Die-casting Aluminum
ProductSize	1079386153mm	1489386153mm	1539386153mm	1629386153mm	1869386153mm	2029386153mm

Core Performance Highlights

● Power Range: 100W – 350W

● Luminous Efficiency: up to 160 lm/W

● LED Chip: SMD 3030

● Battery Type: LiFePO4 with BMS

● Solar Panel: Monocrystalline

● Control Mode: Light sensor + Microwave motion sensor

● IP Rating: IP65

System Architecture

● High-Efficiency Solar Charging

Monocrystalline solar panel with conversion efficiency above 21%.

Fast charging within 6–8 hours under standard sunlight conditions.

● High Lumen LED Module

160 lm/W output with secondary optical lens design, optimized for roadway illumination and uniform distribution.

● Intelligent Energy Management

Built-in microwave motion sensor.

100% brightness when motion detected; dimming mode during standby to extend battery autonomy.

● LiFePO4 Battery System

Long-cycle lithium iron phosphate battery with integrated BMS protection.

2000+ cycles, stable performance in outdoor environments.

parameter

Technical Specifications

Model	Power	Solar Panel	Battery	Install Height
A15-100	100W	18V 81W	12.8V 36Ah	5–7m
A15-150	150W	18V 116W	12.8V 54Ah	6–8m
A15-200	200W	18V 120W	12.8V 57Ah	7–9m
A15-250	250W	18V 129W	12.8V 66Ah	8–10m
A15-300	300W	18V 140W	12.8V 72Ah	9–11m
A15-350	350W	18V 162W	12.8V 84Ah	10–12m

Charging Time: 6–8 Hours
Discharging Time: 15–18 Hours
Warranty: 3 Years

Application

Urban Roads, Municipal Streets, Industrial Areas,Parking Zones, Infrastructure Projects

Streets and public walkways

Parking lots and industrial parks

Residential communities

Engineering Support

● OEM & private labeling available

● Custom battery capacity optional

● Photometric files available upon request

● Project consultation supported

FAQ

Technical Confirmation

What installation height is recommended for A15 series?

Depending on wattage configuration, A15 is suitable for pole heights between 6–12 meters. Final selection can be adjusted according to road width and lighting class requirements.

Can the battery configuration be customized for project autonomy requirements?

Yes. Battery capacity can be adjusted based on required backup days and local solar radiation conditions. Custom project configurations are available upon request.

Are photometric files available for lighting simulation?

IES files and photometric data can be provided to support DIALux or other lighting design software for project planning and tender submission.
