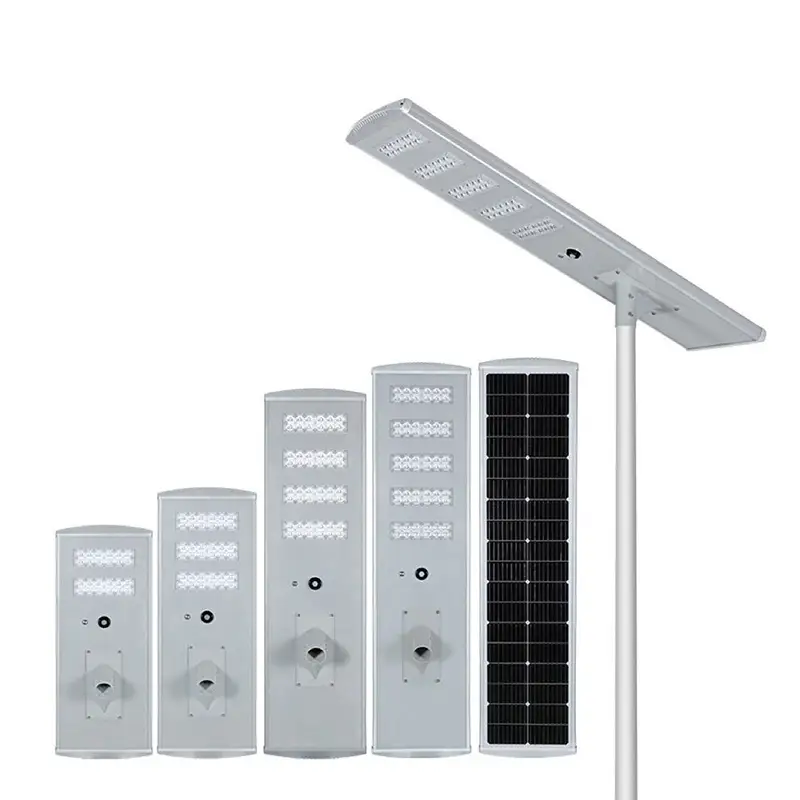

All-in-One Solar Street Light (60W–150W) - SLP-SS-A16

High Lumen Output | 30–36H Backup | Road & Community Lighting

A16 series is a medium-power integrated solar street lighting solution designed for urban roads, residential streets, and commercial outdoor areas.
It combines high-efficiency solar charging, LiFePO4 battery storage, and intelligent motion control in an aluminum alloy housing.

Inquiry

Write a Review

parameter

Parameter Specification

Power	W60	90W	120W	150W
LED Lamp	3030 LED 48PCS 6000K	3030 LED 72PCS 6000K	3030 LED 96PCS 6000K	3030 LED 120PCS 6000K
Solar Panel	6V 60W Monoo-crystalline	6V 80W Mono-crystalline	6V 100W Mono-crystalline	6V 120W Mono-crystalline
Battery Type	LiFePO4 3.2V 43AH	LiFePO4 3.2V 86AH	LiFePO4 3.2V 86AH	LiFePO4 3.2V 129AH
Install Height	3-5m	4-6m	6-8m	8-10m
Product Size	811407209mm	1127407209mm	1496407209mm	1651407209mm
Discharging Time	30-36 hours
Led	160 lm/w
Material	Aluminium alloy
Charging Time	6-8 hours

Core Performance Overview

● Power Range: 60W / 90W / 120W / 150W

● Luminous Efficiency: 160 lm/W

● LED Type: SMD 3030

● Solar Panel: Monocrystalline 60W–120W

● Battery: LiFePO4 3.2V 43Ah–129Ah

● Charging Time: 6–8 Hours

● Discharging Time: 30–36 Hours

● Control Mode: Motion Sensor + Light Control

● IP Rating: IP65

System Architecture

High Brightness LED Module

160 lm/W luminous output using SMD 3030 LEDs with secondary optical lens design to ensure uniform light distribution and improved roadway coverage.

Efficient Solar Charging System

High-efficiency monocrystalline solar panel with stable power generation performance.

Designed for fast charging within 6–8 hours under standard sunlight conditions.

Intelligent Motion Control

Built-in motion sensor enables:

● 100% brightness when movement detected

● 30% dimming mode during standby

This extends battery autonomy and improves energy efficiency.

Long-Life LiFePO4 Battery

Integrated lithium iron phosphate battery with BMS protection:

● 6–8 year design life

● Low self-discharge rate

● Overcharge & over-discharge protection

parameter

Technical Specifications

Model	Power	Solar Panel	Battery	Install Height
A16-60	60W	6V 60W	3.2V 43Ah	3–5m
A16-90	90W	6V 80W	3.2V 86Ah	4–6m
A16-120	120W	6V 100W	3.2V 86Ah	6–8m
A16-150	150W	6V 120W	3.2V 129Ah	8–10m

Operating Temperature: -20°C to 60°C

Waterproof Rating: IP65

Warranty: 3 Years

Application

Urban Secondary Roads, Residential Streets, Parking Lots, Community Areas, Industrial Parks

Streets and public walkways

Parking lots and industrial parks

Residential communities

FAQ

Technical Confirmation

Recommended Installation Height

Installation height ranges from 3 to 10 meters depending on model selection and road width.

Can the lighting mode be adjusted?

Yes. Time control and motion sensing modes are supported based on project requirements.

Is this suitable for low sunlight regions?

Battery capacity and working mode can be adjusted according to local solar radiation conditions.
