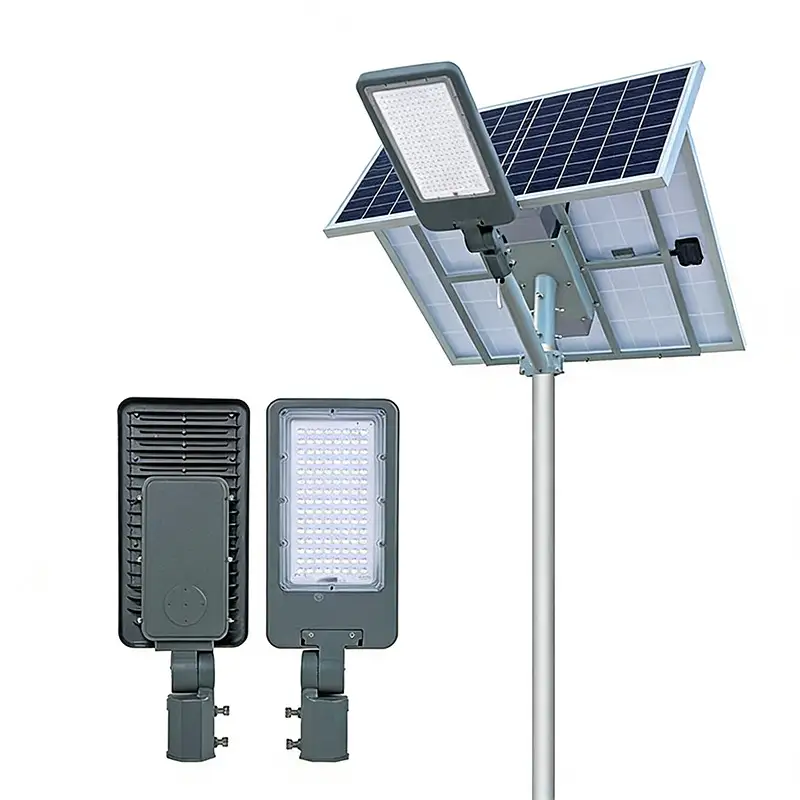

Split Solar Street Light System for Highway & Government Infrastructure Projects - SLP-SS-S01 1

Split Solar Street Light System for Highway & Government Infrastructure Projects - SLP-SS-S01 2

Split Solar Street Light System for Highway & Government Infrastructure Projects - SLP-SS-S01

Key Highlights
● Separate Solar Panel Design
● Large Battery Capacity Available
● Flexible Panel Angle Adjustment
● High Autonomy for Rainy Regions
● Designed for Large-Area Projects
● P66 Professional Outdoor Protection

Inquiry

Write a Review

parameter

Parameter Specification

LED Lamp	3030 LED 60PCS	3030 LED 120PCS	3030 LED 180PCS	3030 LED 240PCS
Solar Panel	18V 64W Polycrystalline	18V90W Polycrystalline	18V 120W Polycrystalline	18V 150W Polycrystalline
ProductSize	503169 85 mm	568210 75 mm	659250 79 mm	734300 95mm
Battery Type	LiFePO4 128V 36AH	LiFePO4 12.8V 48AH	LiFeP04 12.8V54AH	LiFeP04 12.8V 60AH
Install Height	3-5m	4-6m	5-7m	6-8m
Charging time	6-8 hours
Discharging time	30-36hours
Material	Die-Casting Aluminium
Led	160 Im/w
Warranty	3years

Product Overview

SLP-SS-S01 is a professional split-type solar street lighting system designed for highways, municipal roads, and government infrastructure projects.

Unlike integrated models, the solar panel is installed separately, allowing optimized tilt angle and higher charging efficiency.

This structure enables larger battery capacity and longer autonomy, making it suitable for heavy-duty lighting applications.

Split System Architecture

The system consists of:

● High-efficiency mono solar panel (separate mounting)

● LiFePO4 lithium battery (integrated or external box)

● Intelligent MPPT controller

● High-lumen LED street light head

Advantages:

● Adjustable solar panel angle

● Larger solar panel size

● Higher battery storage

● Longer backup during rainy season

● Suitable for higher mounting heights

● High Autonomy Energy System

Split configuration supports:

● 3–5 Rainy Days Backup

● Larger battery capacity options

● Higher wattage output

● Extended nighttime operation

Ideal for regions with unstable weather conditions.

Engineering Advantages

● Flexible Installation Layout

Solar panel can be oriented toward optimal sun exposure.

● High Power Output

Supports higher wattage compared to integrated models.

● Long-Distance Cable Option

Allows installation flexibility based on site conditions.

● Corrosion-Resistant Construction

Designed for coastal and high-humidity environments.

● Intelligent MPPT Charging

Improves energy conversion efficiency.

Application

Highways, Main Urban Roads, Industrial Zones, Government Infrastructure Projects, Coastal Roads, Remote Mountain Roads

Streets and public walkways

Parking lots and industrial parks

Residential communities

Installation

● Separate Solar Panel Mounting

● Adjustable Tilt Angle

● Cable Connection Between Panel and Luminaire

● Suitable for Heavy-Duty Poles

Available Configurations

● Multiple panel wattage options

● Battery capacity customization

● Motion sensor optional

● Remote monitoring optional

FAQ

Frequently Asked Questions

What is the main difference between split and all-in-one models?

Split systems allow larger solar panel and battery capacity, making them suitable for high-power and highway projects.

How many rainy days backup can be achieved?

Up to 5 days depending on configuration.

Is this suitable for government tenders?

Yes, split systems are widely used in infrastructure and public lighting projects.
