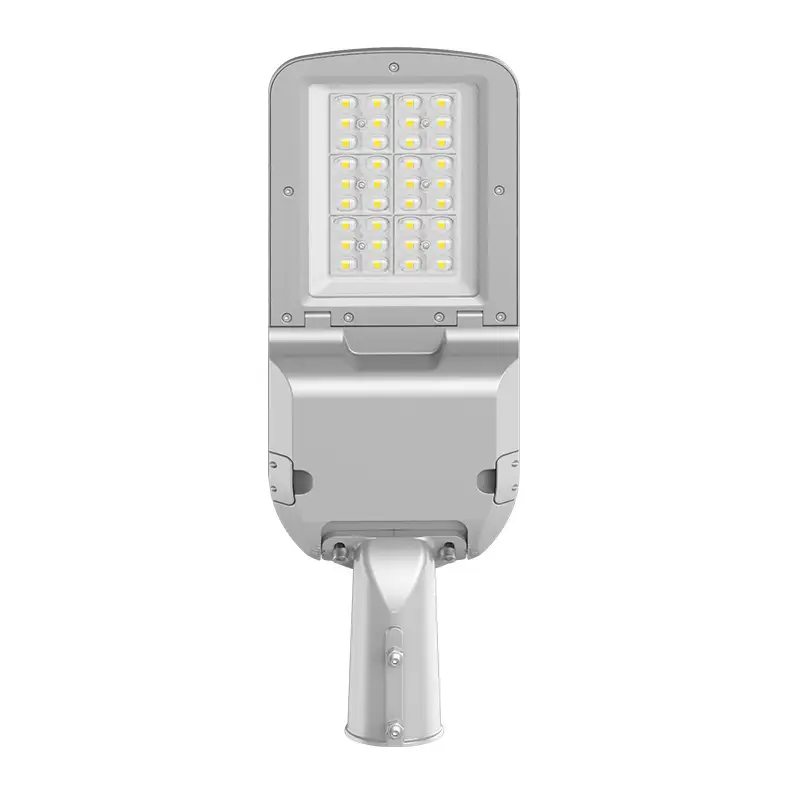

NEMA 7-Pin LED Street Light IP66 for Smart Projects 1

NEMA 7-Pin LED Street Light IP66 for Smart Projects 2

NEMA 7-Pin LED Street Light IP66 for Smart Projects 3

NEMA 7-Pin LED Street Light IP66 for Smart Projects 4

NEMA 7-Pin LED Street Light IP66 for Smart Projects

Key Highlights
● NEMA 7-Pin Socket for Smart Control
● Plug-in Surge Protection for Easy Replacement
● IP66 Sealed Optical Engine
● 85–305V Wide Voltage Operation
● International Certifications (ENEC / CB / UKCA / SASO)
● Up to 7-Year Warranty Option

Inquiry

Write a Review

parameter

Technical Specifications

ITEM No.	SA007-25W	SA007-50W	SA007-60W	SA007-80W	SA007-100W	SA007-120W	SA007-150W	SA007-180W	SA007-200W	SA007-240W	SA007-300W
LED Power	25W	50W	60W	80W	100W	120W	150W	180W	200W	240W	300w
Input Voltage	AC85-305V
Luminous Flux	170m/w
Luminous Flux	4250	8500LM	10200LM	13600LM	17000LM	20400LM	25500LM	30600LM	34000LM	40800LM	51000LM
CCT	warm white(2700-3500k) ＞0.95 Pure white(4000-5000k) ＞80 Cool white(6000-6500k)
CRI	80Ra
PF Rate	>0.95
Material	Aluminum+Glass +Optical Lens
Beam Angle	T2M/T3M
Product/CTN Size	493174108mmm / 623255170mm	493174108mmm / 623255170mm	493174108mmm / 623255170mm	562200108mm /623255170mm	562200108mm /623255170mm	562200108mm /623255170mm	680260109mm /736315170mm	680260109mm /736315170mm	766300108mm /790355170mm	766300108mm /790355170mm	793300130mm /846355150mm
NW/GW	3.4kg/4.3kg	3.4kg/4.3kg	3.4kg/4.3kg	4.2kg/5.2kg	4.2kg/5.2kg	4.2kg/5.2kg	5.1kg/6.1kg	5.1kg/6.1kg	5.8kg/6.7kg	5.9kg/6.8kg	7.2kg/8.2kg

Product Overview

The SLP-ST-P002 is a smart-ready LED street lighting solution designed for municipal, highway, and government infrastructure projects.

Featuring a modular three-compartment structure, the luminaire separates the LED engine, driver, and mounting section to maintain long-term IP integrity and simplify maintenance.

Equipped with a NEMA 7-Pin socket and plug-in surge protection device, this model is ideal for projects requiring photocell or smart lighting control integration.

Certified to multiple international standards, it is suitable for global infrastructure tenders.

Smart Control Ready Design

SLP-ST-P002 includes a NEMA 7-Pin receptacle, allowing direct installation of photocells or smart lighting control nodes.

The integrated plug-in surge protection device ensures:

● Easy replacement without dismantling the luminaire

● Reduced maintenance time

● Enhanced electrical safety

This design supports future smart city upgrades and remote lighting management systems.

Core Engineering Advantages

● Three-Compartment Structure

Independent optical, driver, and mounting chambers protect internal components and maintain sealing performance during installation or servicing.

● High Surge Protection

Standard 10kV/10kA, optional 20kV/20kA for lightning-prone and unstable power grid regions.

● Fully Sealed IP66 Optical Engine

Ensures long-term protection against dust and water ingress while maintaining photometric performance.

● Wide Voltage Operation

85–305V AC input with optional 12V/24V DC version, suitable for regions with voltage fluctuation.

● Corrosion-Resistant Construction

Marine-grade aluminium housing with stainless steel hardware, designed for coastal and industrial environments.

parameter

Parameter Specification

Power Range	25W – 300W
LED Type	SMD 5050 (Philips)
Luminous Efficacy	Up to 170 lm/W
Beam Angle	Type II / III / IV
CCT	2700K – 6500K
CRI	>80
Input Voltage	85–305V AC
DC Option	12V / 24V
Power Factor	≥0.95
Surge Protection	10kV/10kA (20kV optional)
IP Rating	IP66
Impact Rating	IK09
Operating Temperature	-40°C to +55°C
Housing Material	Marine-grade Aluminium
Mounting	Slip Fitter (Side Entry Ø60mm)
Control Interface	NEMA 7-Pin
Lifetime	>50,000 hours
Warranty	7 Years (Mean Well) / 5 Years (Moso / Sosen)
Certifications	CE / RoHS / TÜV / ETL / CB / IECEE / ENEC / UKCA / SASO / SABER

International Certification Compliance

Certified with:

CE / RoHS / TÜV / ETL / CB / IECEE / ENEC / UKCA / SASO / SABER

Suitable for Europe, Middle East, Africa, and international government projects

Available Wattages

25W / 50W / 60W / 80W / 100W / 120W / 150W / 180W / 200W / 240W / 300W

Suitable for applications ranging from residential streets to highways and high mast lighting

Application

Highways & Motorways， Urban & Residential Streets， Government Infrastructure Projects， Interchanges， Industrial Zones，

Harbours & Loading Bays，Public Squares & Pedestrian Areas， Smart City Lighting Systems

Streets and public walkways

Parking lots and industrial parks

Residential communities

Installation & Mounting

● Side Entry Ø60mm

● Slip Fitter Mounting

● Hinge Opening System

● Automatic Power Disconnection During Maintenance

● Plug-in Surge Protection for Fast Replacement

Downloads

● Product Datasheet

● IES Photometric File

● Installation Manual

FAQ

Frequently Asked Questions

Does SLP-ST-P002 support smart lighting control systems?

Yes. It is equipped with a NEMA 7-Pin socket, allowing easy integration with photocells or smart lighting control nodes.

Is this model suitable for international government tenders?

Yes. The luminaire is certified with ENEC, CB, IECEE, UKCA, SASO, and other international standards, making it suitable for global infrastructure projects.

What is the difference between P001 and P002?

P002 includes a NEMA 7-Pin smart control interface and extended certification coverage, while P001 focuses on installation alignment with an integrated level meter.

What warranty options are available?

Up to 7 years warranty with Mean Well driver, and 5 years with Moso or Sosen driver.
