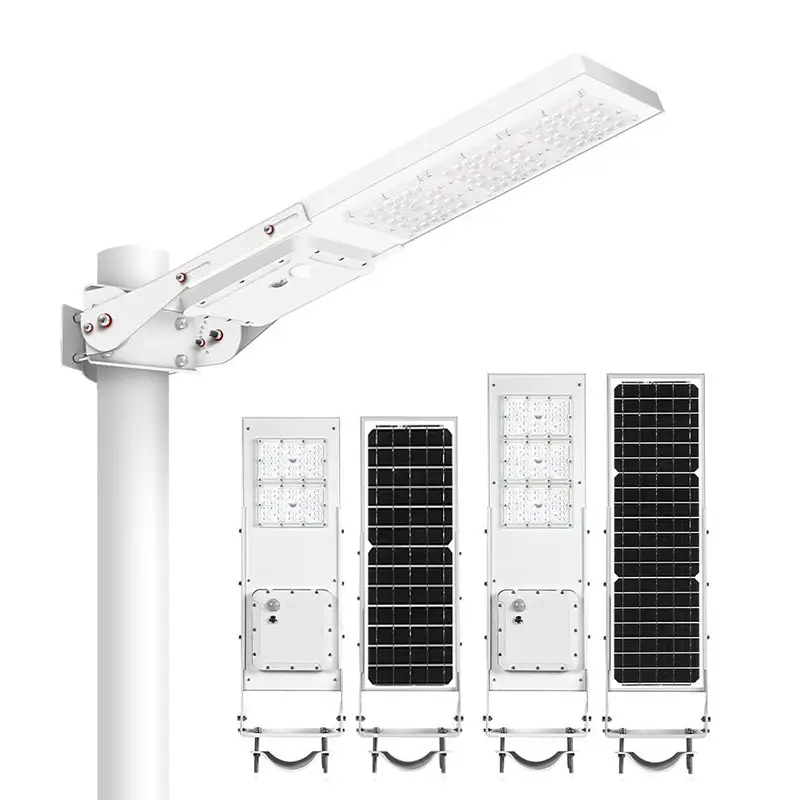

All-in-One Solar Street Light with MPPT Controller for Municipal & Rural Projects - SLP-SS-A7
● 21% High-Efficiency Monocrystalline Solar Panel
● Patent Pro-Double MPPT Controller (45–50% Higher Efficiency)
● Philips LED with Optical Lens
● IR Motion Sensor (8–10M Detection, 100% / 30% Dimming Mode)
● Brand New Lithium Battery with Built-in BMS
● Waterproof Integrated Design
● Pole & Wall Mount Installation
parameter
Parameter Specification
| Power | 60w | 100w |
| Lithium iron phosphate battery | 8AH/3.2V | 12AH/3.2V |
| Solar panel | 10W/10V | 15W/10V |
| Lumen | 150LM/W | |
| Color Rendering Index | >80 | |
| Beam angle | 75°*150° | |
| Color temperature | 3000~6000K | |
| Material | Aluminum | |
| Operating Temperature | -20℃~+50℃ | |
| IP rating | IP65 | |
| Remote control | Yes | |
| Installation method | Lamp pole/wall | |
| Warranty | 3 years | |
| Charging controller | Patented PRO Double MPPT solar controller | |
| Lamp Size |
455*200*80mm |
655*200*80mm |
Product Overview
SLP-SS-A13 is an integrated all-in-one solar street lighting system designed for quick deployment municipal and rural road projects.
The solar panel, lithium battery, and LED module are integrated into a compact housing, reducing installation time and eliminating external wiring.
This model is ideal for remote areas without grid access and government rural electrification programs.
Integrated Structure Design
The all-in-one configuration combines:
● High-efficiency mono solar panel
● LiFePO4 lithium battery pack
● Intelligent MPPT controller
● High-brightness LED module
All components are housed in a single corrosion-resistant aluminum body.
Benefits:
● Faster installation
● Lower transportation cost
● Reduced theft risk
● Minimal maintenance
Core Engineering Advantages
Long-Life Lithium Battery System
● Brand New Lithium Battery
● Built-in BMS (Battery Management System)
● Overcharge & Over-discharge Protection
● Extended Battery Lifespan
Designed for long-term outdoor operation.
High-Efficiency Mono Solar Panel
Better charging performance even in cloudy environments.
IP65 Sealed Optical Design( Durable Outdoor Protection)
● Waterproof Integrated Design
● Corrosion-Resistant Housing
● Suitable for Harsh Outdoor Environments
Anti-Corrosion Aluminium Housing
Suitable for tropical and humid regions.
Intelligent Temperature Control
Battery protection under extreme weather conditions.
parameter
Technical Specifications
| Model | SLP-SS-A13-60w | SLP-SS-A13-100w |
| Battery | 3.2V 8000mAh | 3.2V 12000mAh |
| Solar panel | 10V 10W | 10V 15W |
| Lamp size | 465*181*45mm | 663*181*45mm |
| CCT | 6000K | |
| Lumens(lm/w) | 150lm/w | |
| Beam angle | 70°*150° | |
| Working time | 12hours 365days | |
| Housing material | Aluminum | |
| Controller | Pantene Pro-Double MPPT Solar Charge Controller | |
| Application | Street,City road, Community,Rural community,Villages,Towns | |
Application
Rural Roads, Village Streets, Residential Areas, Parking Lots, Industrial Yards, Remote Areas Without Grid
Flexible Installation Options
● Pole Mount Installation
● Wall Mount Installation
Suitable for streets, courtyards, rural roads, and building perimeters.
Available Configurations
This model is available in multiple configurations:
● Different solar panel capacities
● Different battery capacities
● Motion sensor optional
● Customized lighting profile
