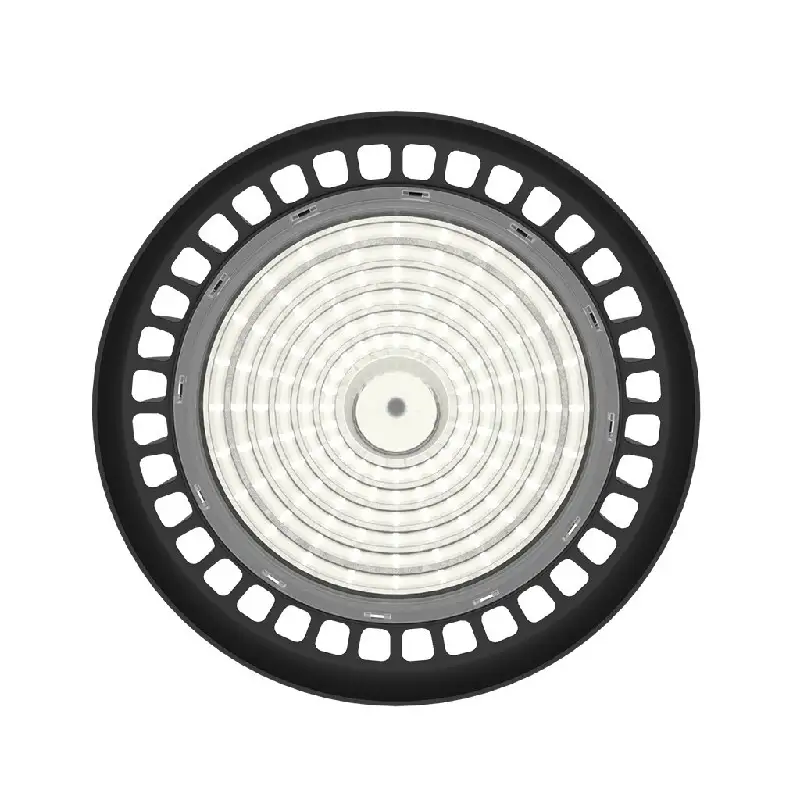

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use 1

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use 2

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use 3

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use 4

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use 5

SA003 UFO High Bay LED Light, High Efficiency 150lm/W, Industrial & Warehouse Use

SA003 UFO LED High Bay Light
High Efficiency Industrial Lighting Solution
SA003 is a patent private mould UFO LED high bay light designed for industrial and commercial lighting applications. It combines high luminous efficiency, stable driver performance, and durable die-casting aluminum housing.

Inquiry

Write a Review

Integrated Die-Casting Aluminum Structure

● Patent private mould design

● Integrated die-casting aluminum housing

● Strong heat dissipation performance

● Durable and impact-resistant structure

Material:

Die-casting Aluminum + PC lens cover

Protection Level:

● IP66 waterproof

● IK08 impact resistance

Suitable for dusty, humid, and heavy-duty industrial environments.

High Efficiency – Up to 150lm/W

● Luminous efficiency up to 150lm/W

● Energy-saving solution

● Reduced electricity consumption

● Lower operating cost

● Designed for large-area high ceiling lighting.

Professional Anti-Glare Optical Design

Equipped with full cut-off PC lenses:

Available beam angles: 60°, 90°, 120°

Provides controlled light distribution and reduces glare.

Suitable for:

● Factory workshops

● Warehouses

● Logistics centers

● Sports halls

Intelligent Control Options

Optional smart functions:

● 0/1-10V dimming

● Time control

● Light sensing

● IoT control system

● Can be integrated into energy-saving lighting management systems.

Reliable Driver Options

Available driver brands:

● Meanwell

● Lifud

● Sosen

● Stable performance and long lifespan.

Easy Installation – Hook Mounting

● Standard hook mounting

● Quick installation

● Suitable for high ceiling applications

Application Areas

Widely used in: Construction site lighting,Industrial plants,Sports centers,Gas stations,Parking lots,Railway stations,

Seaports,Large-scale energy-efficient lighting project

Construction site lighting

4 (2)

3 (3)

parameter

Technical Specifications

ITEM No.	Led Lamp	Luminous Flux	NW/GW	Carton size
60W	2835 200pcs	>9000LM	1.5KG/2KG	273x273x150mm
100W	2835 200pcs	>15000LM	1.5KG/2KG	273x273x150mm
150W	2835 300pcs	>22500LM	1.9KG/2.5KG	318x318x155mm
200W	2835 400pcs	>30000LM	2.2KG/3KG	353x353x160mm
240W	2835 400pcs	>36000LM	2.3KG/3.1KG	353x353x160mm

Input Voltage	85-300VAC		CCT	2700K-6500K
Beam Angle	60°,90°,120°		Light efficiency	>150LM/W
Accessories	hook mounting		IP Grade	IP66
Material	Die-casting Aluminum+PC cover		Life span	50000h

FAQ

Frequently Asked Questions

What ceiling height is SA003 suitable for?

SA003 is suitable for ceiling heights between 6–15 meters depending on wattage and beam angle selection. 60° is recommended for higher ceilings, while 90° or 120° works well for medium-height warehouses.

Is SA003 suitable for warehouse and factory lighting?

Yes. With up to 150lm/W efficiency and IP66 protection, it is widely used in warehouses, workshops, logistics centers, sports halls, and industrial facilities.

What driver brands are available?

Driver options include Meanwell, Lifud, and Sosen. Different configurations are available based on project and budget requirements.

Does it support dimming or smart control?

Optional functions include: 0-10V dimming,Time control,Light sensor,IoT control It can be integrated into energy-saving lighting management systems.

What is the protection rating?

SA003 is rated: IP66 (waterproof & dustproof),IK08 (impact resistant),Suitable for industrial environments.

What warranty is available?

Standard warranty is 3–5 years depending on driver configuration and project requirements.
