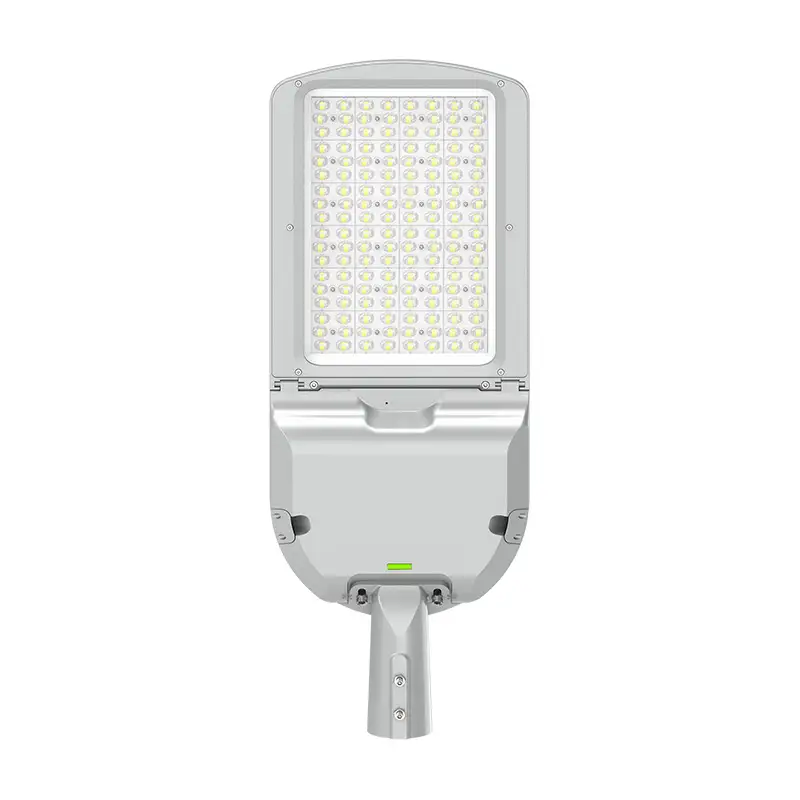

LED Street Light IP66 10kV Surge for Highway Projects

SLP-ST-P001
Heavy-Duty LED Street Light for Infrastructure Projects

Key Highlights
● IP66 Sealed Optical Engine
● 10kV Surge Protection (20kV Optional)
● 85–305V Wide Voltage Operation
● Replaceable LED Engine Design
● Marine-Grade Aluminium Housing
● Automatic Power Cut-Off Protection

Inquiry

Write a Review

Product Overview

The SLP-ST-P001 is a professional LED street lighting solution designed for highways, urban roads, industrial zones, and public infrastructure projects.

Built with a three-compartment structure separating the LED engine, power supply, and mounting section, the luminaire ensures long-term IP integrity and simplified maintenance.

Engineered for unstable grid environments and harsh outdoor conditions, it delivers reliable performance in high-temperature, high-humidity, and coastal regions.

Core Engineering Advantages

● Three-Compartment Structure

Independent optical, driver, and mounting chambers protect internal components and maintain sealing performance during installation or maintenance.

● High Surge Protection

Standard 10kV/10kA protection, optional 20kV/20kA for lightning-prone and unstable power grid environments.

● Fully Sealed IP66 Optical Engine

Prevents dust and water ingress, ensuring long-term photometric stability and reduced maintenance frequency.

● Upgradeable LED Engine

The LED module and driver can be replaced independently, reducing lifecycle cost and extending project service life.

● Wide Voltage Operation

85–305V AC input with optional DC version, suitable for regions with voltage fluctuation.

parameter

Technical Specifications

Parameter	Specification
Power Range	25W – 300W
LED Type	SMD 5050 (Philips)
Luminous Efficacy	Up to 170 lm/W
Beam Angle	Type II / III / IV
CCT	2700K – 6500K
CRI	>80
Input Voltage	85–305V AC
DC Option	12V / 24V
Power Factor	≥0.95
Surge Protection	10kV/10kA (20kV optional)
IP Rating	IP66
Impact Protection	IK09
Operating Temperature	-40°C to +55°C
Housing Material	Marine-grade Aluminium
Cover	Tempered Glass + Optical Lens
Mounting	Slip Fitter (Side Entry Ø60mm)
Auto Power Cut-Off	Yes
Sensor	Photocell (Optional)
Certifications	CE / RoHS / TÜV / ETL
Lifetime	>50,000 hours
Warranty	6 Years (Mean Well) / 5 Years (Sosen)

Available Wattages

25W / 50W / 60W / 80W / 100W / 120W / 150W / 180W / 200W / 240W / 300W

Suitable for residential roads, main urban streets, highways and high mast lighting systems.

Installation & Mounting

● Side Entry Ø60mm

● Slip Fitter Mounting

● Hinge Opening System

● Automatic Power Disconnection During Maintenance

Applications

● Highways & Motorways

● Urban & Residential Streets

● Interchanges

● Car Parks

● Industrial Zones

● Harbours & Loading Bays

● Public Squares & Pedestrian Areas

● Security Perimeter Lighting

Installation & Alignment Assistance

Integrated Level Meter

SLP-ST-P001 includes a built-in level meter to ensure accurate horizontal alignment during installation.

This feature improves installation precision and ensures standardized roadway lighting performance.

Downloads

● Product Datasheet

● IES Photometric File

● Installation Manual

FAQ

Frequently Asked Questions

Is SLP-ST-P001 suitable for unstable power grid environments?

Yes. The luminaire operates within a wide input voltage range of 85–305V AC, making it suitable for regions with voltage fluctuation.
It is equipped with 10kV/10kA surge protection as standard, with optional 20kV/20kA for lightning-prone areas.

Can the LED module or driver be replaced independently?

Yes. The SLP-ST-P001 is designed with a modular three-compartment structure.
The LED engine (LED module + driver) can be replaced or upgraded separately without affecting the optical sealing, reducing long-term maintenance cost.

What protection level does the luminaire provide?

The optical engine is fully sealed to IP66, protecting against dust and water ingress.
Impact resistance is rated at IK09, ensuring durability in public infrastructure and industrial environments.

Is the luminaire suitable for coastal or high-humidity environments?

Yes. The housing is manufactured from marine-grade aluminium and secured with stainless steel hardware.
Special anti-galvanic corrosion design prevents reaction between stainless steel and aluminium, ensuring long-term reliability in coastal and harbour areas.

What mounting options are available?

The luminaire is designed for side entry installation with a Ø60mm slip fitter.
It includes a hinge opening system and automatic power cut-off for safer installation and maintenance.

What is the expected service life and warranty?

The LED lifetime is rated at over 50,000 hours.
Warranty is up to 6 years when equipped with Mean Well driver, and 5 years with Sosen driver.
