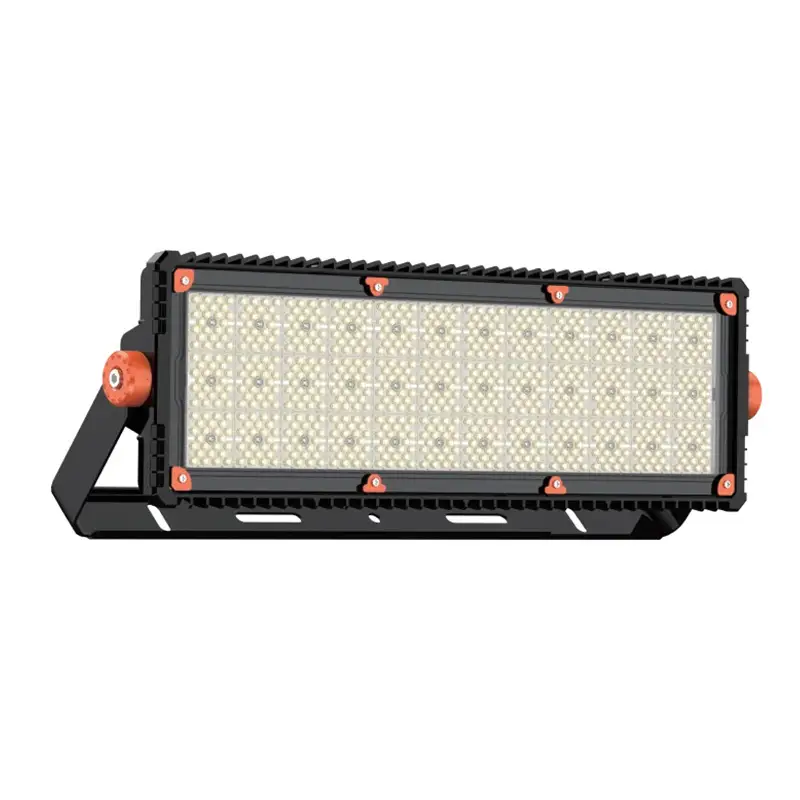

High Power LED Flood Light SA001 with Folding Heat Sink, Adjustable Modular Optics for Stadium & High Mast Lighting
Lightweight Modular Design for Professional Stadium & High Mast Projects
Innovative Folding Heat Sink Technology
SA001 adopts advanced stamping and twisting folding heat sink technology.
Compared with traditional die-casting aluminum heatsinks, the folding structure:
● Enlarges heat dissipation surface area
● Improves airflow circulation
● Reduces thermal resistance
● Increases heat dissipation efficiency by up to 2X
Result:
● Longer LED lifespan
● Stable lumen output
● Reduced light decay
This design is especially suitable for high-power applications such as stadiums and high mast lighting.
Aviation-Grade Aluminum – Ultra Lightweight Structure
The fixture is manufactured using aviation-grade ultra-thin aluminum, making it significantly lighter than conventional floodlights.
For the same wattage:
● Weight reduced by up to 50%
● Lower pole load requirement
● Reduced structural cost
● Easier installation
● Better wind resistance (strong hurricane resistant design)
This helps project contractors reduce total system cost.
Adjustable Modular Optical
System (Uo ≥ 0.9)
Each lighting module is independently adjustable.
Engineers can fine-tune beam angles without repositioning the bracket.
Benefits:
● Optimized lighting distribution
● Higher uniformity
● Uo ≥ 0.9 achievable
● Meets professional sports field standards
Ideal for:
Stadium lighting
Airport apron lighting
Port terminals
Industrial yards
Large outdoor area illumination
Flexible Mounting Options
Multiple installation adaptors available:
● Adjustable floodlight bracket
● Slip fitter adaptor (pole mount)
● Supports both floodlight and street light applications.
Why SA001 Is Ideal for Government & EPC Projects
● High thermal efficiency
● Lightweight structure reduces installation cost
● High uniformity output
● Modular maintenance design
● Suitable for high mast and large area lighting
Designed for projects requiring:
● Long lifetime
● High performance
● Lower total ownership cost
● Strong wind resistance
parameter
Technical Specifications
| Led Power range | 500w-2000W |
| Led Lamp | SMD 5050(PHILIPS) |
| Light Efficient | 170lm/w |
| IP Grade | IP66 |
| Input Voltage | AC85-305V |
| Operating Temperature | -40˚C to +55˚C |
| Power Factor (PF) | >0.95 |
| Life span | >50000 hours |
| Beam angle | 30°/45°/60°/90° |
| CCT | 2700k~6500k |
| CRI | >80 |
| Material | Aluminum+glass+ lens |
| Certification | CE,ROHS,TUV,FCC,ETL |
| Guarantee | 6 years(Meanwall)& 5 years(Moso) |
Product display
FAQ
Frequently Asked Questions
The folding heat sink adopts advanced stamping and twisting technology, which enlarges the heat dissipation surface area significantly.
Compared with traditional die-casting aluminum heat sinks:
Up to 2X better thermal performance
Faster heat transfer
Lower LED junction temperature
Reduced lumen depreciation
This ensures longer lifespan and stable performance in high-power applications such as stadium and high mast lighting.
SA001 is specially designed for large-area lighting applications requiring:
High illuminance
High uniformity (Uo ≥ 0.9 achievable)
Adjustable optical distribution
Strong wind resistance
It is widely used for:
Stadium lighting
Airport apron lighting
Port terminals
Industrial yards
Highway interchanges
SA001 uses aviation-grade ultra-thin aluminum and modular structure design.
For the same wattage:
Weight can be reduced by up to 50%
Lower pole load requirement
Reduced steel structure cost
Easier installation
This is especially important for high mast projects where wind load and pole cost are critical.
Yes.
Each lighting module is independently adjustable.
Engineers can fine-tune the beam angle without moving the mounting bracket. This allows better control of lighting distribution and helps achieve high uniformity in sports and large-area lighting projects.
With efficient thermal management and high-quality LED components, the system is designed for:
50,000+ hours lifespan
Low lumen depreciation
Stable long-term operation
Actual lifespan depends on working environment and driver configuration.
SA001 supports multiple mounting solutions:
Adjustable bracket for flood lighting
Slip fitter adaptor for pole mounting
It can be configured for both floodlight and streetlight-style installations.
SA001 is designed for professional engineering projects requiring:
High performance
Long service life
Reduced total cost of ownership
Structural safety
Easy maintenance
Technical documentation and photometric data can be provided for tender support.
