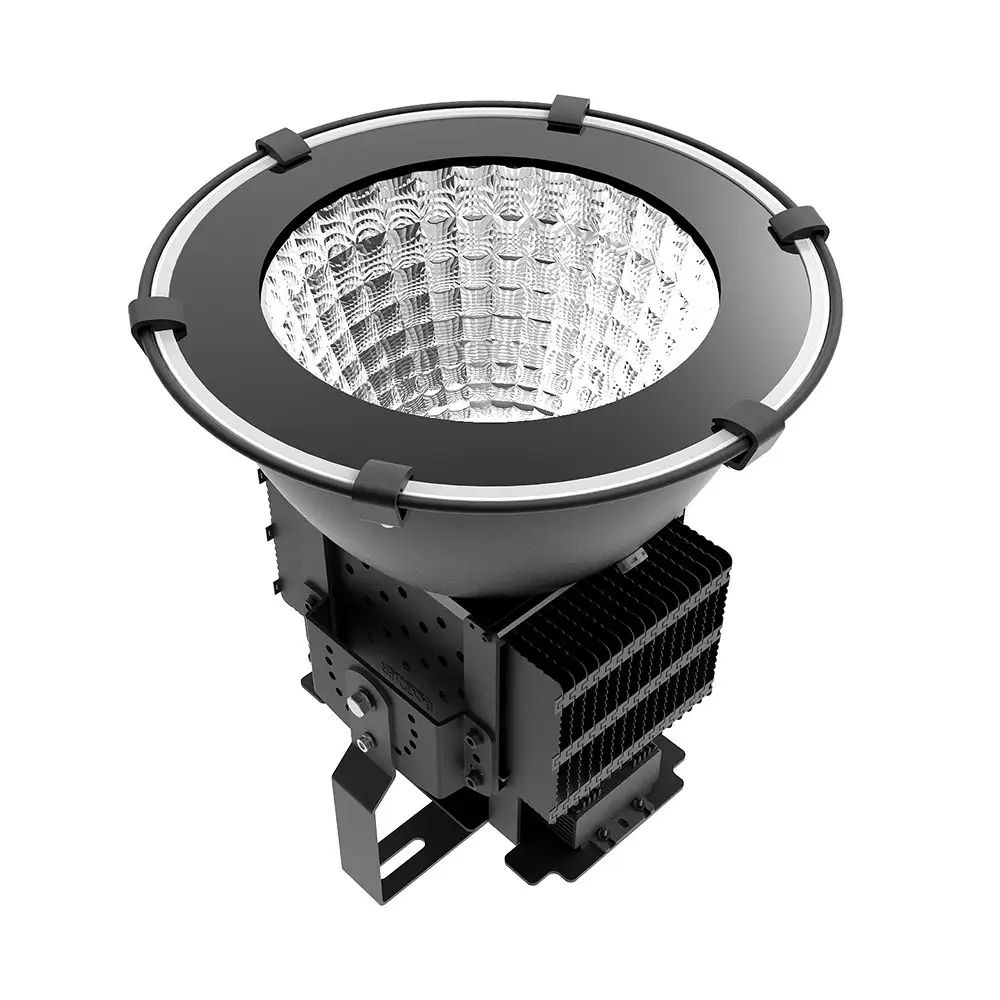

120W LED Flood Light IP65 Outdoor High Lumen Stadium Lighting

120W Outdoor LED Flood Light

The 120W LED flood light is designed for high-performance outdoor and industrial lighting applications. Equipped with high-efficiency SMD3030 LEDs and a reliable Meanwell driver, it delivers stable brightness, long lifespan, and excellent energy efficiency.

With an advanced copper heat pipe cooling system and IP65 waterproof protection, this floodlight ensures long-term performance even in harsh environments.

Inquiry

Write a Review

Key Features

⭐ High Luminous Efficiency

Output: >15600 lumens
Efficiency: 130 lm/W
Bright and energy-saving

⭐ Premium Driver (Meanwell)

High stability
PF >0.95
Efficiency >92%

⭐ Advanced Heat Dissipation

Aluminum heat sink + copper heat pipe
Extends lifespan to 50,000+ hours

⭐ IP65 Waterproof Protection

Dustproof & waterproof
Suitable for outdoor environments

⭐ Flexible Beam Angles

Options: 25° / 60° / 90°
Suitable for different lighting needs

Technical Specifications

🔹 Electrical

Power: 120W
Input Voltage: AC85–300V / AC180–528V
Power Factor: >0.95
Driver: Meanwell
Efficiency: >92%

🔹 Optical

LED Type: SMD 3030
LED Quantity: 120 pcs
Luminous Flux: >15600LM
Beam Angle: 25° / 60° / 90°
CRI: >80
CCT: 2700K–6500K

🔹 Mechanical

IP Rating: IP65
Working Temperature: -40°C to +50°C
Lifespan: >50,000 hours
Material: Die-cast aluminum
imensions & Packing
Product Size: 375 × 375 × 410 mm
Weight: 9.3 kg
Carton Size: 470 × 470 × 550 mm

Advanced Thermal Management

This LED flood light adopts a professional thermal management system to ensure maximum performance and durability:

Deep fin aluminum structure increases heat dissipation area
Made of high thermal conductivity 1060 aluminum
Copper heat pipe replaces traditional aluminum cooling block
Thermal paste ensures full contact between LED chips and heat sink
Significantly reduces heat accumulation and LED failure

This design ensures stable lumen output and long-term reliability even under continuous operation.

Applications

Widely used for:

Stadium lighting
Sports fields
Industrial areas & factories
Warehouses
Ports and docks
Building facades
Parking lots
Public squares

Installation & Safety

Installation must be carried out by qualified personnel
Ensure voltage compatibility before installation
Disconnect power before maintenance
Ensure proper ventilation around the fixture
Avoid exposure to fire or strong vibration

7 (8)

8 (6)

阿联酋项目

体育场项目

项目4

运动场项目

足球场项目

包装照片

Frequently Asked Questions

What is the lifespan of this LED flood light?

The lifespan is over 50,000 hours under normal working conditions.

Is this flood light suitable for outdoor use?

Yes, it features IP65 waterproof protection, suitable for all outdoor environments.

What driver does this product use?

It uses a high-quality Meanwell driver for stable and reliable performance.

Can I choose different beam angles?

Yes, 25°, 60°, and 90° beam angles are available.

Is it suitable for stadium or high mast lighting?

Yes, it is widely used in stadiums and large-area lighting projects.
